A Guide to Construction Timber Grading
When working on any construction project, choosing the right timber is crucial for ensuring structural integrity and long-term durability. Construction timber is graded to indicate its strength, resilience, and suitability for different applications. In this guide, we’ll explain what these grades mean, how timber is graded, and the types of projects each is best suited for.
What Does Timber Grading Mean?
Making the right choice

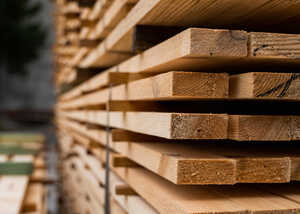

Timber grading is a process used to assess and classify wood based on its strength, stiffness, and quality. This ensures the material meets specific requirements for structural use. Grading can be done either visually by a trained specialist or mechanically using advanced equipment.
Visually graded timber is inspected for defects like knots, grain deviations, or splits, which can affect its load-bearing capacity. Mechanically graded timber is assessed using machines that apply pressure to test its strength and elasticity. Once graded, the timber is assigned a code — from C14 all the way up to C24 — that represents its load-bearing capabilities.
The “C” in these grades stands for “conifer,” as most structural timbers in the UK are derived from softwoods like spruce, pine, or fir. The numbers indicate the strength class, with higher numbers reflecting stronger, more durable wood.
The different grades of construction timber
The right timber for the right project
What Is C14 Timber?
C14 timber is a basic structural grade with the lowest strength and stiffness among commonly graded timbers. It is often used for light-duty applications where minimal load-bearing capacity is required. This grade is primarily suited for non-structural uses, such as interior wall partitions, light framework, or temporary structures like scaffolding supports.
Although C14 timber is more affordable than higher grades, its limitations mean it is unsuitable for outdoor use or environments exposed to significant loads, moisture, or harsh weather. Without proper treatment, C14 timber is prone to decay and damage, which restricts its usability to indoor applications with controlled conditions.
What Is C16 Timber?
C16 timber is a widely used structural grade known for its affordability and availability. It’s often sourced from fast-growing conifer species and is suitable for most general construction projects. While slightly less strong and durable than C24 timber, it still meets the requirements for many load-bearing applications.

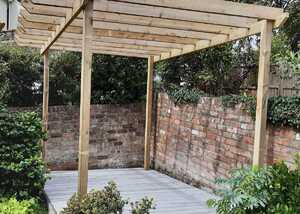

C16 is typically used in environments where the timber won’t be exposed to heavy loads or harsh weather conditions. It’s a common choice, for instance, for indoor structural applications like stud walls, roof battens, and joists. It’s also used in outdoor projects, such as pergolas and garden structures provided the timber has been pressure-treated to resist decay and moisture.
What Is C18 Timber?
C18 timber is a mid-strength structural grade offering a balance between affordability and durability. It provides greater load-bearing capacity and stiffness than C14 or C16 timbers, making it a good choice for moderately demanding structural applications. C18 timber is commonly used for floor joists, small roof trusses, and general framing work in both residential and commercial projects.
In addition to indoor applications, C18 timber can be used for outdoor projects if it has been pressure-treated to resist moisture, rot, and insect damage. Its increased strength over C16 makes it more reliable for structural tasks where durability is needed, but it still falls short of the performance offered by C24 timber.

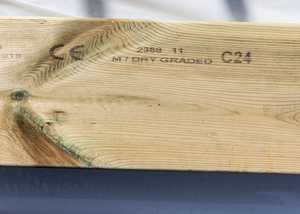

What Is C24 Timber?
C24 timber is a superior structural grade with enhanced strength, stiffness, and durability. It’s often sourced from slower-growing trees, which produce denser and more robust wood. This grade is subjected to stricter quality control during the grading process, ensuring it can handle greater loads and resist deformation over time.

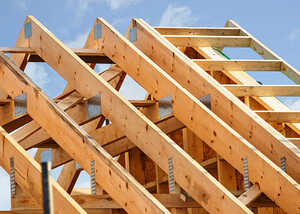

Because of its higher strength class, C24 construction timber is ideal for demanding applications where stability and durability are critical. It’s commonly used in projects such as decking substructures, roof trusses, floor joists, and framing. C24 is especially valuable in situations where timber will be exposed to external forces, like weather or heavy loads, as its superior properties provide extra assurance of longevity and reliability.
What are the Key Differences Between C16 and C24 Timber?
Strengths and weaknesses
C16 and C24 timber are the most commonly-used construction timbers in the UK, and their differences can be found in their strength and performance. While both grades are suitable for structural use, C24 offers greater resilience, making it a better choice for high-stress environments. Its improved strength also means you can often use smaller cross-sections of C24 timber to achieve the same structural performance as larger C16 timbers, which can be advantageous for certain designs.
C16 remains, however, a practical and cost-effective solution for less demanding applications. It’s a reliable option for projects where heavy loads or external exposure are not primary concerns. This balance between affordability and functionality makes C16 timber one of the most popular grades for general-purpose construction.
Choosing the Right Timber for Your Project
Choose treated timber for peace of mind
When deciding between C16 and C24 timber, it’s essential to consider the specific requirements of your project. For indoor or light-duty applications, C16 timber often provides the perfect balance of performance and cost. For outdoor or high-stress applications, C24 timber offers the strength and durability needed for long-term reliability.
Meanwhile, the type of treatment the timber has undergone can influence its suitability. For outdoor use, both C16 and C24 timbers should be pressure-treated to protect against moisture, rot, and insect damage. Kiln-dried timber is also an excellent choice for structural applications, as it reduces the risk of shrinkage or warping after installation.
Here at Fountain Timber, all our C24 timbers have been kiln-dried and pressure-treated, making it the perfect choice for projects that rely on the strength and structural support of its construction materials.
the importance of timber grading
Meeting safety and performance standards
Using correctly graded timber ensures your construction project meets safety standards and performs as intended. Both C16 and C24 timber comply with European standards for structural wood (EN 338), meaning they’re reliable choices for UK construction.
The grading system provides peace of mind, helping both construction professionals and skilled DIYers select the right material for their needs.
Beyond safety, choosing the appropriate grade can also improve efficiency. Using higher-strength timber like C24 will in certain cases reduce the amount of wood needed for a project, while opting for C16 in less demanding projects can help manage costs without sacrificing quality.
How can we help?
By considering the specific requirements of your project, as well as the treatment and grading of the timber, you can ensure a safe, durable, and cost-effective result.
If you’re still unsure which timber grade is best for your needs, the team at Fountain Timber is here to help. With a wide selection of C24 timber and other construction materials available, we can provide expert advice to guide you through your purchase.
All the help we provide is aimed to assist you in making the best choices for your construction needs, but you should always consult a professional if you’re unsure.
